Forging Steering Knuckles for Maximum Vehicle Performance

Forging steering knuckles are critical components in today’s automotive world. They must withstand constant stress, operate in challenging environments, and ensure the wheels are stable and properly aligned. By choosing a forged steering knuckle, manufacturers and vehicle owners benefit from excellent mechanical properties and reliability. In this blog, we delve deep into the importance of forging steering knuckles, explore their manufacturing process, discuss materials and design, and explain how they bring superior performance to modern vehicles.

1. Significance of Forging Steering Knuckles

The steering knuckle is the crucial pivot point for the wheels, connecting the suspension and steering system together. A durable forging steering knuckle provides:

• Superior Strength: Forged parts exhibit outstanding toughness, making them ideal for carrying heavy loads.
• Longer Lifecycle: With better fatigue resistance, forging steering knuckles maintain performance over extended periods.
• Enhanced Safety: Properly manufactured knuckles help stabilize the vehicle’s steering and reduce the risk of failures.

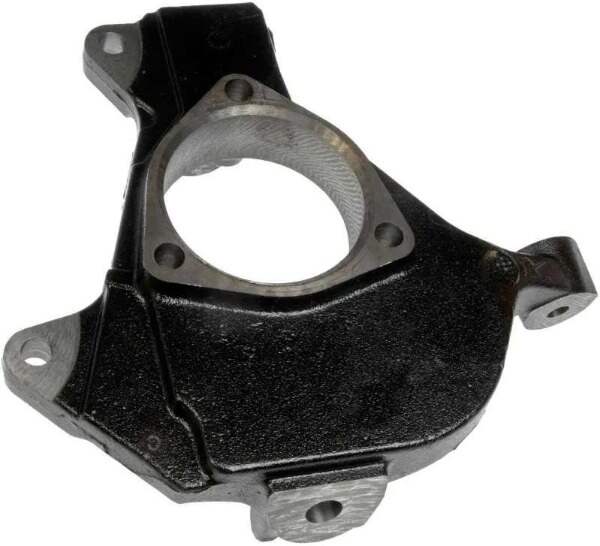

The example pictured below shows a heavy-duty forged steering knuckle designed for robust performance and longevity.

2. Forging Process and Its Advantages

Forging involves applying compressive force to shape heated metal into the desired configuration. This process refines the metal’s internal grain structure, thereby yielding parts with:

• Consistent Quality: Better structural integrity and minimal defects.
• Improved Mechanical Properties: Higher strength, ductility, and impact resistance compared to other manufacturing methods.
• Cost-Effectiveness: While forging may require specialized equipment, the resulting product can significantly reduce maintenance and replacement costs over its lifetime.

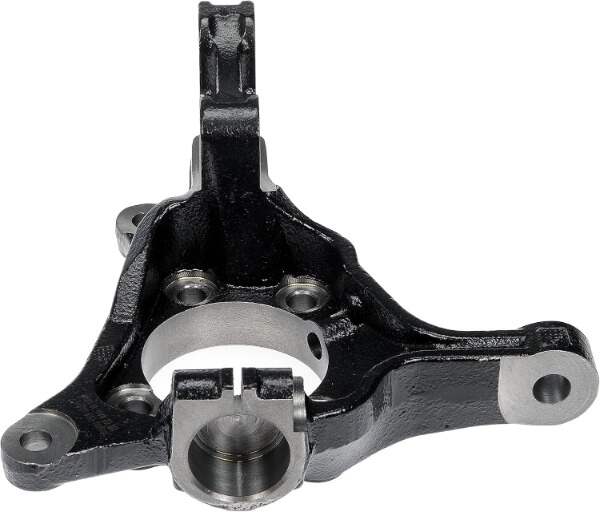

Below is a forged steering knuckle demonstrating the characteristic robust design resulting from an optimized forging process.

3. Material Selection for Optimal Performance

Choosing the right material is paramount for forging steering knuckles. Commonly, carbon steel, alloy steel, or ductile iron are used due to their high tensile strength and excellent wear resistance. Key considerations when selecting the material include:

• Load-Bearing Requirements: The steering knuckle must handle vehicle weight and dynamic forces.
• Corrosion Protection: Ideal materials exhibit anti-rust or anti-corrosion properties for long-term durability.
• Machinability and Cost: Factoring in production expenses and the ease of machining post-forging is essential.

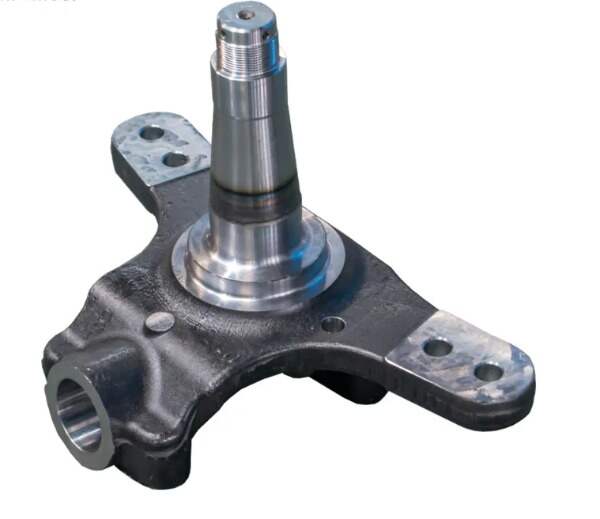

In the image below, you can observe a well-designed carbon steel steering knuckle that exemplifies balanced strength and corrosion resistance.

4. Design Considerations for Forging Steering Knuckles

To guarantee top-notch performance, the design must incorporate:

• Accurate Dimensions: Precise tolerances ensure consistent alignment of the suspension and brake systems.
• Weight Optimization: Achieving the right balance between strength and lightweight design boosts vehicle handling and efficiency.
• Surface and Heat Treatment: Proper finishing and heat treatment enhance fatigue life and reduce wear over time.

In the following image, notice the carefully contoured mounting points for bearing, suspension, and brake components. This precise geometry helps ensure a snug fit and peak efficiency.

5. Rigorous Testing and Quality Assurance

Steering knuckles must be thoroughly tested before they reach the market. Typical tests include:

• Non-Destructive Testing (NDT): Detects subsurface or surface flaws without affecting part integrity.
• Fatigue and Stress Analysis: Ensures that knuckles hold up under repetitive loading conditions.
• Dimensional Inspection: Confirms key tolerances are within acceptable ranges to ensure proper fitment.

Bearing seats, threaded holes, and other critical areas undergo close scrutiny, helping deliver safe, high-performing steering knuckles.

Conclusion

Forging steering knuckles is an effective solution for anyone seeking the highest level of durability and performance in automotive components. By choosing superior materials and following meticulous design, forging, and testing protocols, manufacturers can create parts able to stand up to rigorous demands on the road. From superior strength to longevity and cost-effectiveness, the benefits of forging steering knuckles are plentiful.
