How Does a Slewing Bearing Work? Discover the Essential Mechanics

Introduction: A slewing bearing, sometimes called a slewing ring or turntable bearing, is a critical component used in machinery that requires rotational movement under heavy loads. From construction cranes and wind turbines to industrial robots, slewing bearings keep equipment running smoothly and efficiently. But how, exactly, do these giant bearings work? Below, we’ll delve into the core principles, major features, and real-world applications of slewing bearings.

1. Understanding the Basic Structure

A slewing bearing typically consists of an inner ring, an outer ring, rolling elements (often balls or rollers), and separators or spacers that maintain consistent spacing. The gear on either the inner ring or outer ring (or both) allows for controlled rotational movement. Precision seals keep lubrication in and contamination out.

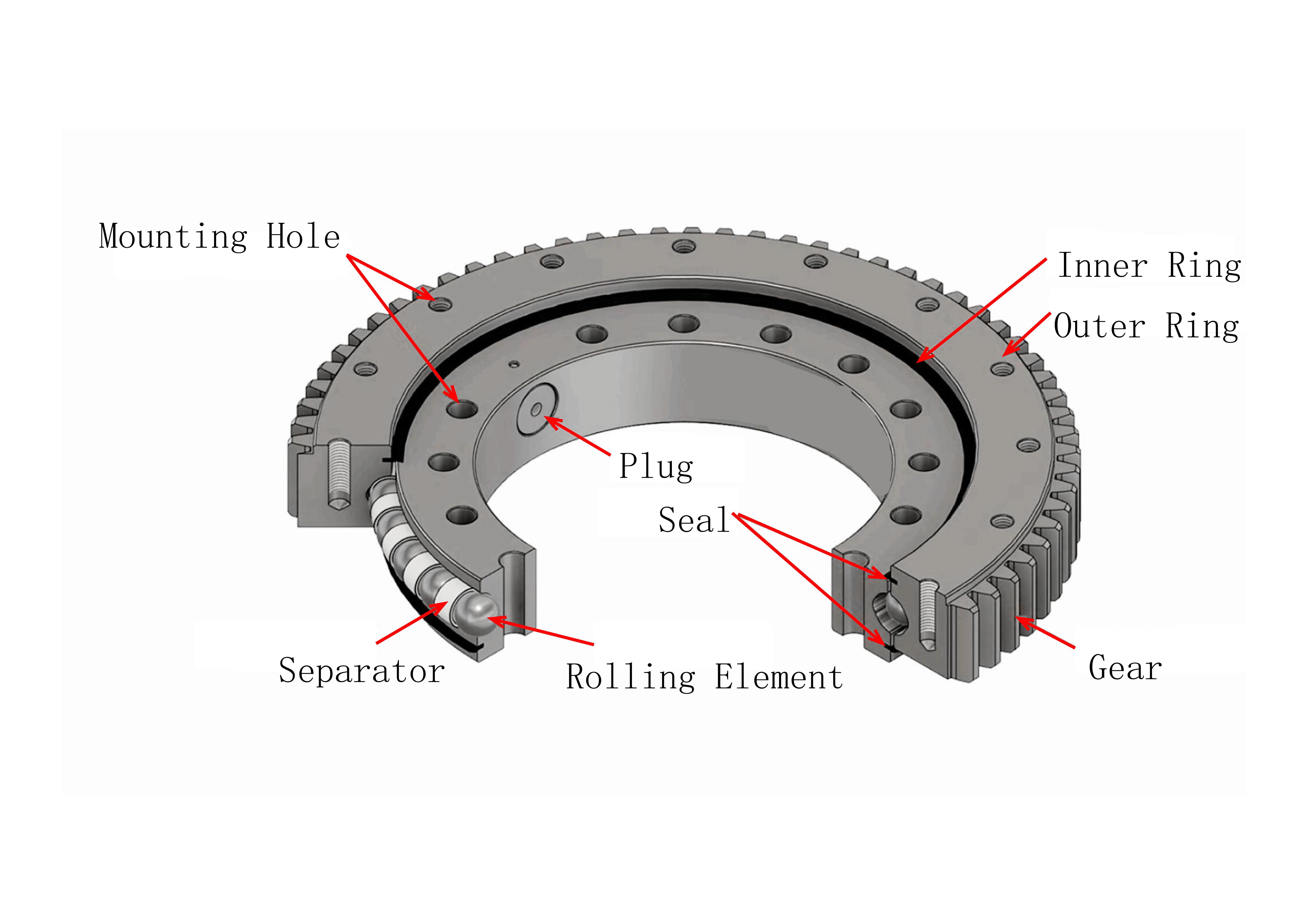

Below is a detailed schematic that illustrates the fundamental design of a slewing bearing, emphasizing core components such as rolling elements, seals, and gears:

2. How Rolling Elements Enable Smooth Rotation

Slewing bearings can include balls or cylindrical/tapered rollers. These rolling elements handle axial, radial, and tilting moment loads simultaneously, making slewing bearings versatile enough for applications in cranes, radar equipment, and offshore platforms. When the bearing is in motion, the rolling elements reduce friction between the inner and outer rings, allowing both heavy-duty and precise movement.

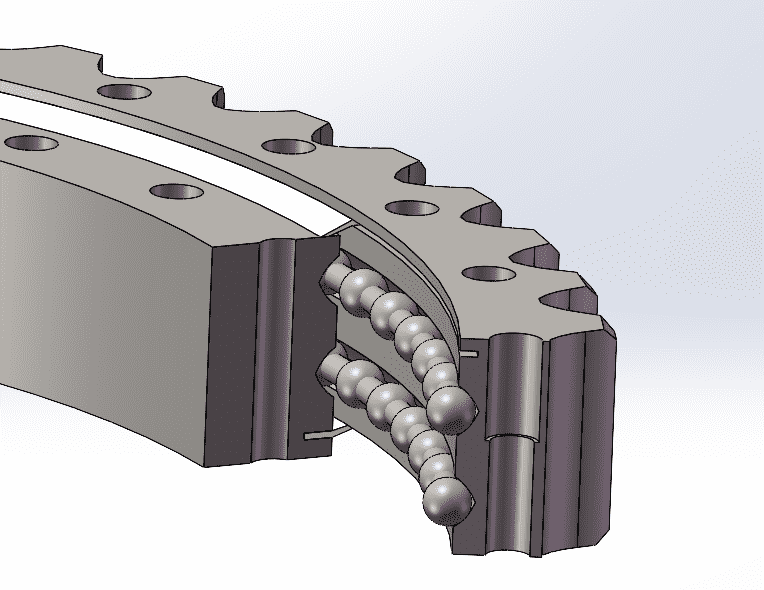

For a closer look at the rolling elements working within the raceway, see the cross-section below:

3. Gears and Power Transmission

Some slewing bearings are designed with an external gear, while others have an internal gear. This gear meshes with a drive pinion, which conveys torque to rotate the bearing. The heightened load capacity and stability come from the large diameter of the rings, ensuring a wide contact surface for power transfer.

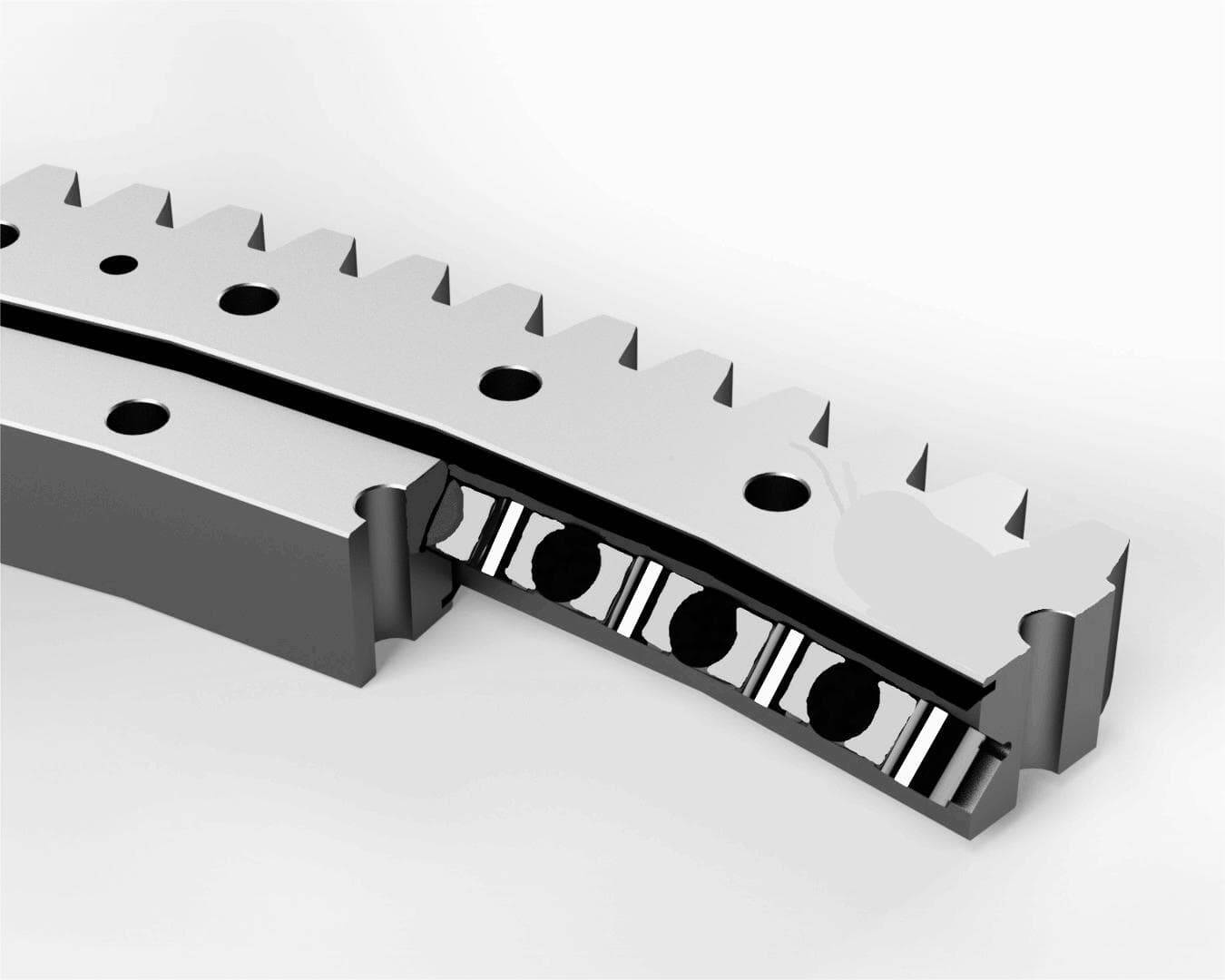

Below, you can observe the outer gear ring and the rolling elements:

4. Sealing and Lubrication for Optimal Performance

Proper sealing keeps dust, moisture, and other contaminants from damaging the rolling elements or the raceway. In addition, appropriate lubrication—whether grease or oil—minimizes friction and heat buildup. Routine maintenance of the seals and correct lubrication intervals are crucial for extending the bearing’s lifetime.

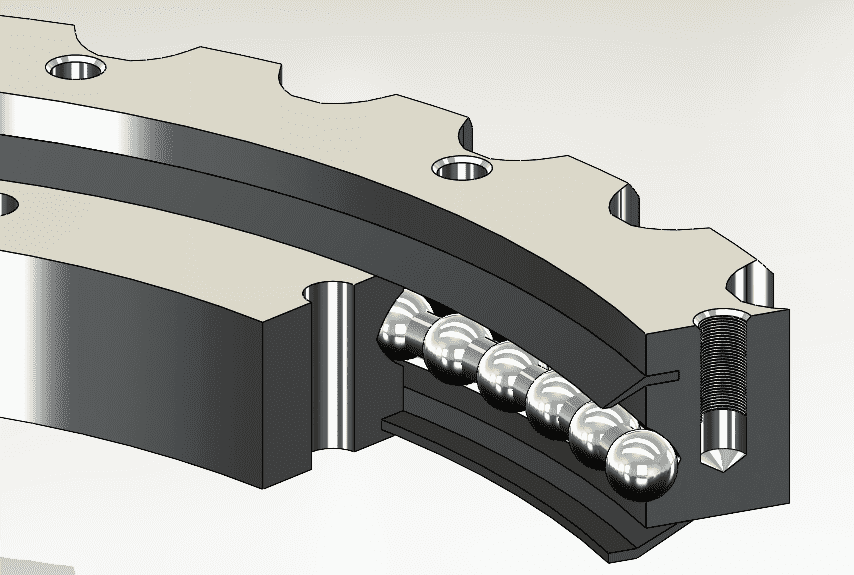

In the following image, you can see how balls are encapsulated tightly by the ring’s structure and protected from external contaminants:

5. Key Applications and Advantages

Slewing bearings excel in heavy-duty machinery where high load capacity and rotational motion are required. They are primarily found in:

• Construction Equipment: Tower cranes, mobile cranes, and excavators rely on slewing bearings for stable rotation.
• Renewable Energy: Wind turbine blade and nacelle rotation utilize large-diameter slewing bearings.
• Robotics and Industrial Automation: Robots with slewing rings can make precise maneuvers under significant payloads.
• Marine and Offshore Machinery: Offshore cranes and drilling rigs use slewing bearings for reliable performance in harsh conditions.

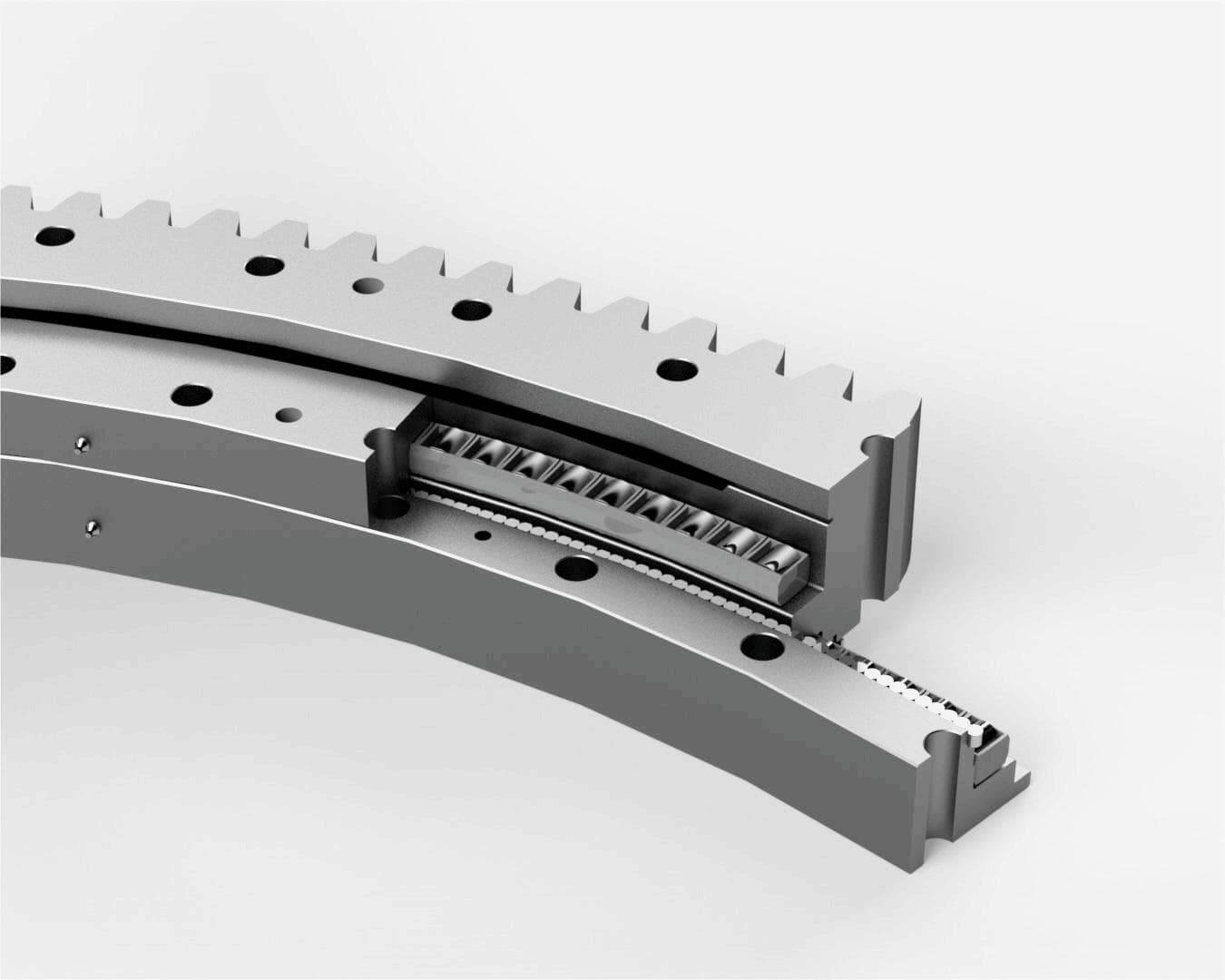

Shown below is an example of a multi-row roller bearing type, suited for applications handling especially large loads:

6. Choosing a Reliable Partner for Quality Components

Many factors contribute to the long-term performance of slewing bearings, including high-quality raw materials, precise machining, and meticulous assembly. Ningbo Ruican Machinery Co., Ltd., established in 2009, specializes in casting and forging parts for machinery components. With advanced manufacturing processes and a focus on carbon steel, low alloy steel, stainless steel, grey iron, and ductile iron products, the company serves various industries with durable equipment parts. Their modern production facilities and commitment to stringent quality standards pave the way for reliable and long-lasting mechanical components.

Conclusion

Slewing bearings are indispensable in any application that demands safe and stable rotational movement under heavy loads. By understanding their structure—inner ring, outer ring, rolling elements, gears, seals, and lubrication—you gain insight into how they enable smooth, precise motion even under great stress. From construction equipment to advanced robotics, slewing bearings ensure consistent and reliable performance.
